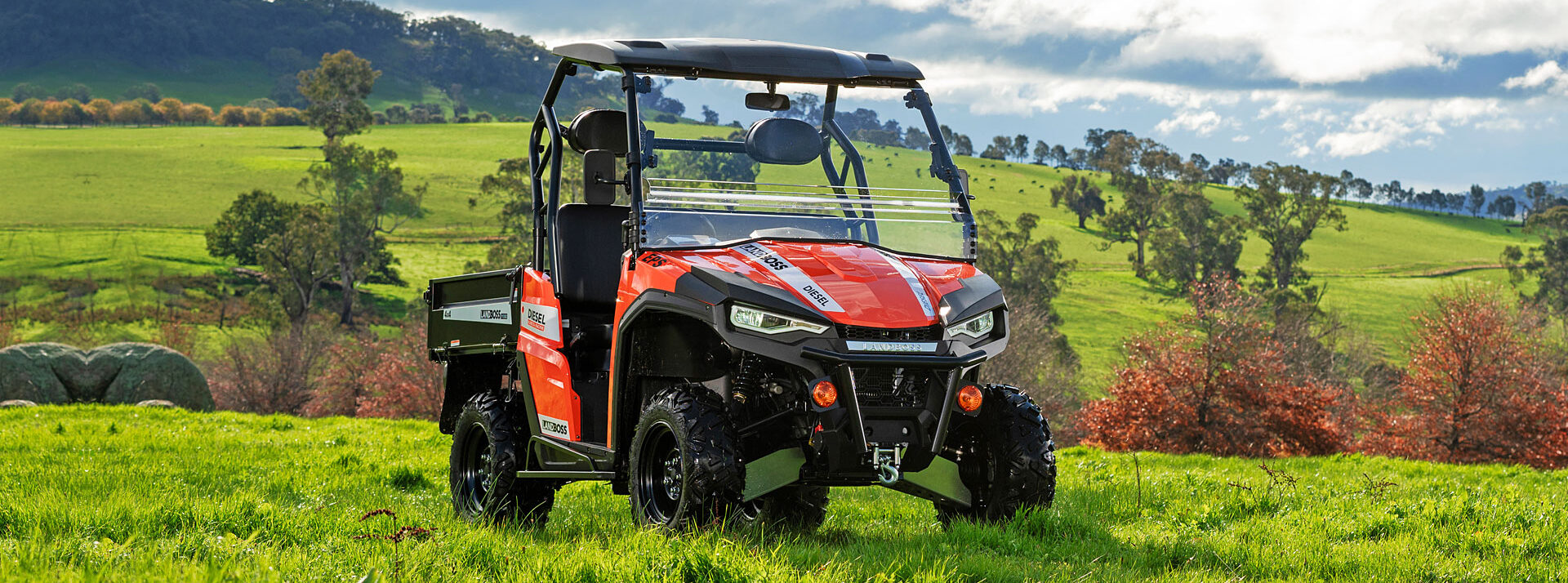

Landboss 1100D ticks all the boxes for Aussie famers with right hand drive.



Powered by a Kubota engine (diesel) the Landboss 1100D is ready to work. With a higher top speed of 60kmh (impressive for a diesel UTV) and bigger tow and carry capacities over the Landboss 800D, the Landboss 1100D will get the job done quick smart.



Durable design matched with serious 4WD capability including all new downhill decent control, the Landboss 1100D is well suited to tackle our harsh Australian working conditions.



Now with Landboss roof kit, ploy split windscreen (not shown) and 4500lb winch as standard.



When it comes to hard work, take charge with Landboss.

National drive away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA dealers.

KEY FEATURES

  • Right hand drive (RHD)
  • 24.8 hp Kubota 3 cylinder Japanese diesel engine
  • 60Km/h top speed
  • Canadian CVTech transmission
  • Downhill descent control
  • Electronic power steering (EPS)
  • Selectable 2WD/4WD with front & rear differential lock, turf mode
  • Durable 26 inch 4 ply tyres mounted to 14 inch black steel wheels
  • Independent dual, A- Arm suspension both front and rear
  • Front and rear tow pack to move a hefty 800kg
  • Steel tip tray with removable drop down sides and a 500kg carry capacity
  • Reverse beeper, a 3 seat bench seat with seat belts for added safety
  • ROPS certified roll frame
  • Steel side steps
  • Roof kit
  • Poly split windscreen
  • 4500lb winch
  • Full lights package, horn and mirrors are all standard features
  • Available in Orange
  • 2 year parts and labour warranty

SPECIFICATIONS

Engine Type

24.8HP, In Line 3 Cylinder, Water Cooled Kubota Diesel

Engine Model

Kubota D1105-E3B

Cooling

Liquid Cooled

Bore & Stroke

78mm x 78.4mm

Compression Ratio

24:1

Maximum Torque

72NM @ 3000rpm

Starter System

Electric

Battery/AMP Hour

12Volt, 45Ah

Lubrication System

Forced Feed

Transmission

CVTech High / Low / Neutral / Reverse, 2WD / 4WD, Front & Rear Differential Lock, Turf Mode, Downhill Descent Control

Clutch

Constant Variable Transmission (CVT)

Final Drive

Shaft Drive

Front Brakes

Hydraulic Disc

Rear Brakes

Hydraulic Disc

Parking Brake

Handbrake

Steering

Electronic Power Steering (EPS)

Drive

Right Hand Drive (RHD)

Front Suspension

Dual A-Arm Coil Over Shock

Rear Suspension

Dual A-Arm Coil Over Shock (IRS)

Tyres (front/rear)

26x9x14 / 26x11x14

Wheels

Front 14×9 / Rear 14×11

WheelsSteel

5 Stud

Dimensions (L/W/H)

3018mm / 1520mm / 1905mm

Wheel Base

1,930mm

Distance between Wheels

990mm

Ground Clearance

240mm

Dry Weight

700kg

Fuel Capacity

35 litres

Cargo Box Capacity

500kg

Rear Tray (L/W/H)

1020mm / 1470mm / 400mm

Towing Capacity

800kg

Warranty

2 Years Parts & Labour

Standard Features

Roof kit, poly split windscreen & winch
